MN Relay
Overview

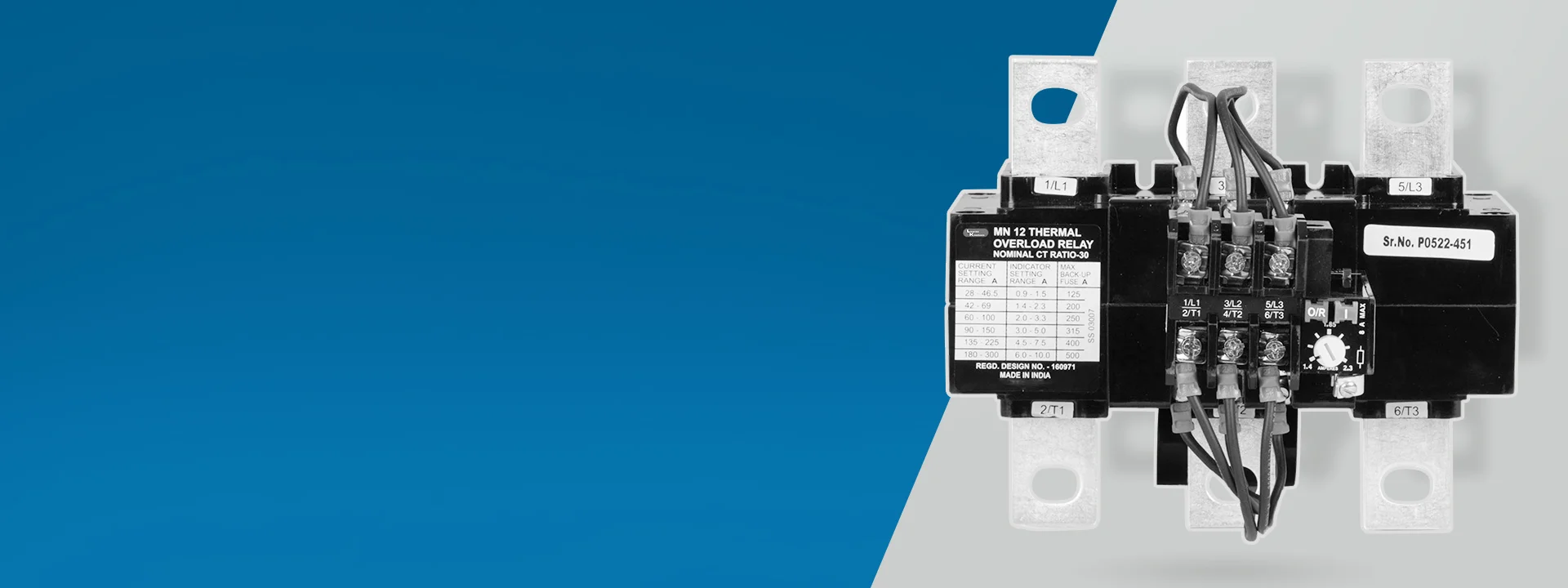

MN Thermal Overload Relays, ranging from 0.2A to 570A, complement the MNX series of power contactors. These relays are compensated for ambient temperature, and their distinctive double slide mechanism ensures dependable protection against single phasing. MN 12L relays, with a trip class of 30, are specifically designed for applications with extended starting times.

alt Text

Benefits

  • Provides flexibility with manual and auto reset modes.
  • Offers enhanced safety with built-in single phasing protection.
  • Features Trip Class 30 in MN 12L relays, ideal for long starting applications.


alt Text

Features

  • Conforms to IS/IEC 60947-4-1 & IEC 60947-4-1 - These thermal overload relays meet the stringent standards set by IS/IEC 60947-4-1 and IEC 60947-4-1, ensuring high reliability and safety in electrical installations.
  • Available in 3 Frame Sizes from 0.2A to 570A - The relays come in three different frame sizes, accommodating a wide range of current ratings from 0.2A to 570A, making them versatile for various applications.
  • Direct Mounting on MNX Contactors - Designed for seamless integration, these relays can be directly mounted on MNX contactors, facilitating easy installation and reducing assembly time.
